Few Mode Fiber LP11 Mode Stripper

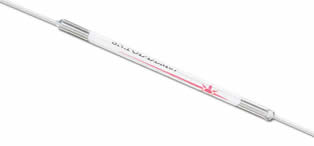

The Phoenix Photonics in-fiber mode stripper is fabricated on dual mode optical fiber. The mode stripper attenuates the LP11 mode whilst allowing the LP01 to pass with low loss. The component is used to define a high quality LP01 following possible mode mixing by splices etc. The quality of the LP11 mode generated by the Phoenix mode converters is dependent on a pure LP01 input mode. The mode stripper ensures optimum isolation for the output mode.

PRELIMINARY SPECIFICATION:

Units

Wavelength

nm

1520 - 1580

Insertion Loss1

dB

<1

Return Loss1

dB

>60

Operating Temperature Range

0C

-5 to 70

Storage Temperature

0C

-40 to +85



Adobe PDF icon View datasheet
