Polarization Maintaining (PM) Fused Couplers

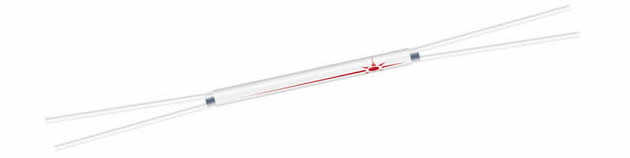

Phoenix polarization maintaining fused couplers are made by fusing and tapering two fibers together. The optical signal directed through the input fiber will be split into two at the fusion point. Phoenix can offer a variety of split ratios (with tap ratios from 1% to 50%). The couplers are available in 1x2 and 2x2 configurations.

Polarization Maintaining Fused Coupler Features

Polarization Maintaining Fused Coupler Applications

Low excess loss

Power splitting

High directivity

Power monitoring

High power handling

Optical fiber sensors

High return loss





SPECIFICATION

Central wavelength

nm

1310, 1550

980, 1064

Bandwidth

nm

±20

Typ. excess loss

dB

0.3

0.8

Max excess loss

dB

0.6

1

Extinction ratio

dB

17

16

Directivity

dB

55

Operating temperature

⁰C

 -40 to +85

Storage temperature

⁰C

 -40 to +85



CONFIGURATION

1x2 or 2x2

Fibre length

0.8m

Fibre type

Panda

Cable diameter

250um

900um

900um, 2mm, 3mm

Dimensions

mm

ɸ3.0 x L54

ɸ3.0 x L70

90 x 16 x 9



Adobe PDF icon View datasheet
